KEL-BES | Brush plate
for cable pass-through
Brush plates KEL-BES for routing cables into server racks, control panels and electrical enclosures. KEL-BES is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets.
The KEL-BES plates match exactly the cut-out dimensions 10-, 16- and 24-pin standard industrial connectors.
Part No.
51510
Specifications
Flame class
UL94-V0, self-extinguishing
Temperaturbereich Range Max
90 C°
Temperaturbereich Range Min
-20 C°
Properties
Halogenfrei, Silikonfrei
Advantages and benefits
Fast and easy assembly
Versatile utilisation
Allows reduced airflow while filtering out dust, hair and larger particulate matter
Visual screening
Protects cables against wear due to sharp edges of the cut-out
Product variants and sizes

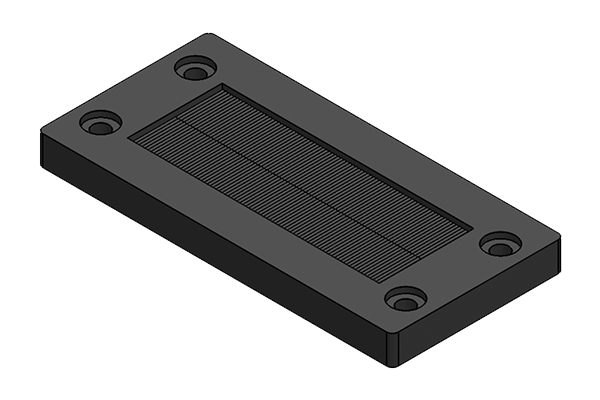

KEL-BES 16
Number
51510
EAN
4251269315435
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
KEL-BES 10
Number
51505
EAN
4251269315428
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting

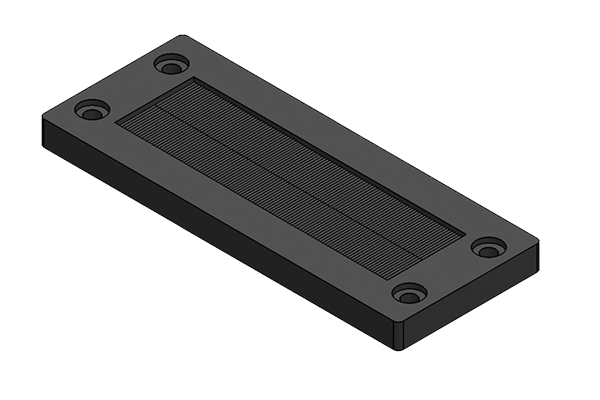

KEL-BES 24
Number
51515
EAN
4251269315442
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
Brush plates KEL-BES for routing cables into server racks, control panels and electrical enclosures. KEL-BES is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets.
The KEL-BES plates match exactly the cut-out dimensions 10-, 16- and 24-pin standard industrial connectors.
