KEL-BES-S | Split brush plate
for cable pass-through
Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
Part No.
51520
Specifications
Flame class
UL94-V0, self-extinguishing
Temperaturbereich Range Max
90 C°
Temperaturbereich Range Min
-20 C°
Properties
Halogenfrei, Silikonfrei
Advantages and benefits
Fast and easy assembly
Subsequent assembly possible
Versatile utilisation
Allows reduced airflow while filtering out dust, hair and larger particulate matter
Visual screening
Protects cables against wear due to sharp edges of the cut-out
Product variants and sizes

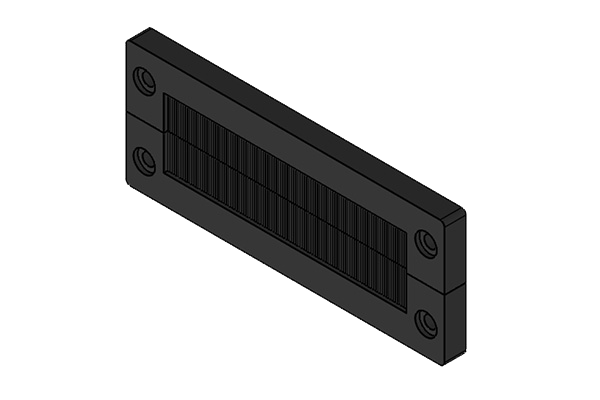

KEL-BES-S 24
Number
51522
EAN
4251269316609
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
KEL-BES-S 24 with expanding rivets
Number
51522.002
EAN
4251269320705
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
KEL-BES-S 16
Number
51521
EAN
4251269316593
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting

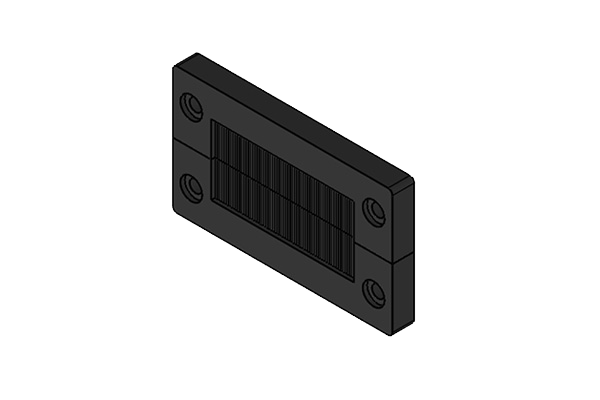

KEL-BES-S 10
Number
51520
EAN
4251269316586
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
KEL-BES-S 10 with expanding rivets
Number
51520.002
EAN
4251269320682
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
KEL-BES-S 16 with expanding rivets
Number
51521.002
EAN
4251269320699
Packaging Unit
Unknown
Mounting options
Riveting, Screw type mounting
Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
