KEL-SNAP | Mounting frames
for tool-free snap-in mounting of cable entry frames / IP54 / UL Type 12*
The patented KEL-SNAP frame provides a quick snap-in assembly of the KEL / KEL-U / KEL-QUICK / KEL-FG-A cable entry systems.
Control panels, cabinets or machines can be equipped with the KEL-SNAP frame at delivery, allowing a simple push in of the KEL frame when routing the cables and conduits. Perfect for enclosures that are maintenance intensive or for an install at a later date.
icotek is also offering the snap-in frame as splittable version KEL-SNAP-S in various sizes that makes a subsequent assembly possible.
There's also a blank plate BPK-SNAP available to close cut-outs of pre-assembled KEL-SNAP frames.
A cut-out of 46 mm also can be chosen instead of 36 mm. Thus prefabricated multi-pin connectors can be used.
* except KEL-SNAP-S series and KEL-SNAP 24-E / KEL-SNAP 24-MT
Part No.
42061
Specifications
Flame class
UL94-V0, self-extinguishing
Temperaturbereich Range Max
140 C°
Properties
Halogenfrei, Silikonfrei
Temperaturbereich Range Min
-40 C°
Advantages and benefits
Upon disassembly (e.g. maintenance) screwing and unscrewing of the cable entry frame is not necessary
Drilling template identical to cable entry frame (except KEL-SNAP-B)
Integrated gasket
Previously assembled cable harnesses are quickly and easily attached
KEL-SNAP-S: Subsequent assembly possible
KEL-SNAP-S: There is no need to thread the cables through the snap-on frame as the divisible frame can be snapped together when the lines have already been passed through the cut-out
Product variants and sizes

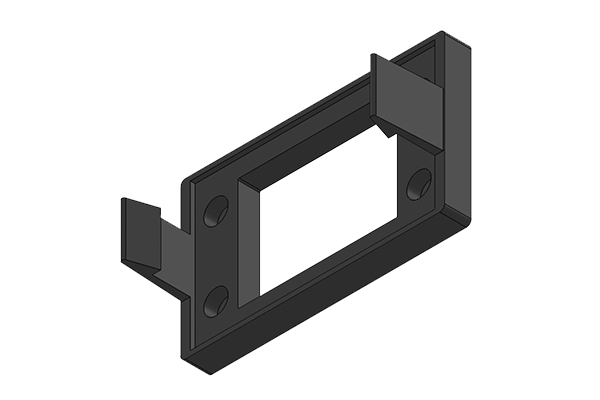

KEL-SNAP 10
Number
42039
EAN
4251269307638
Packaging Unit
Unknown
External diameter
38 mm

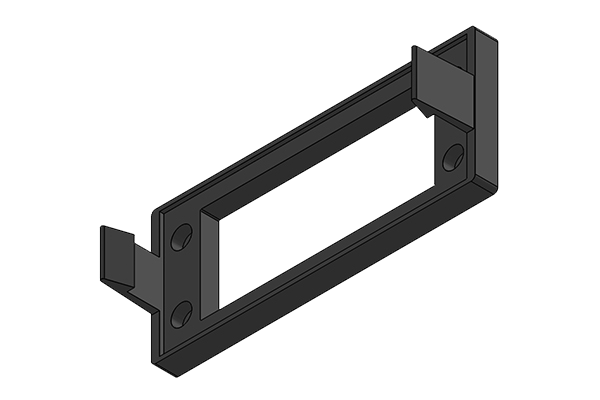

KEL-SNAP 24
Number
42042
EAN
4251269307652
Packaging Unit
Unknown
External diameter
38 mm

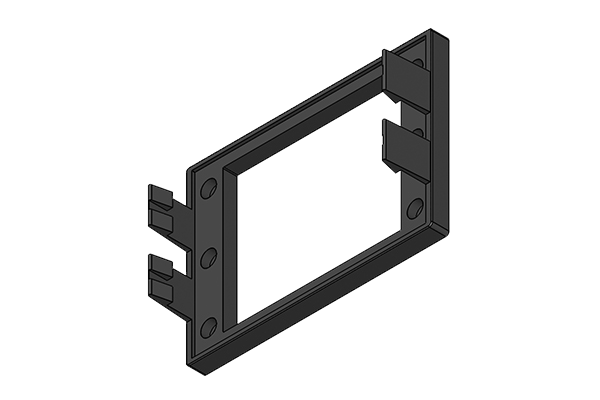

KEL-SNAP 24-MT
Number
42046
EAN
4251269307676
Packaging Unit
Unknown
External diameter
38 mm

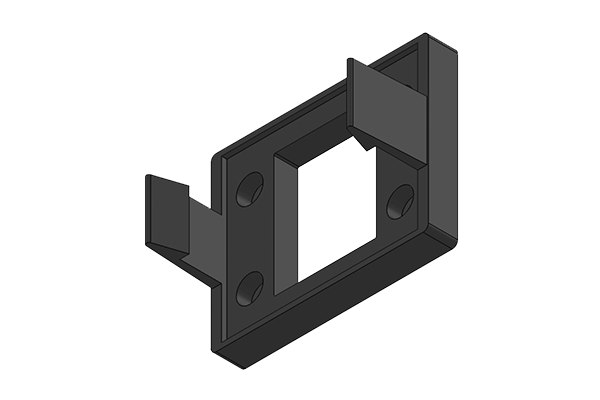

KEL-SNAP-B
Number
42038
EAN
4251269307621
Packaging Unit
Unknown
External diameter
38 mm

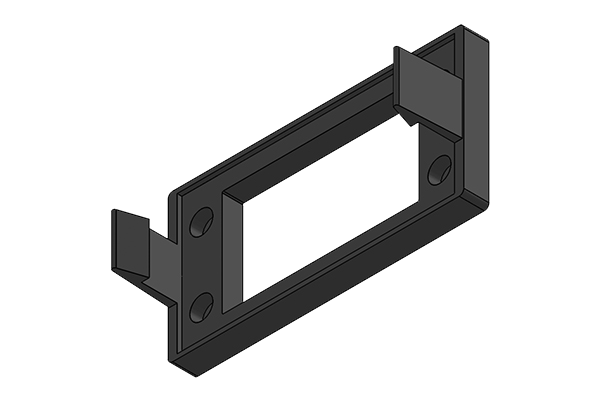

KEL-SNAP 16
Number
42040
EAN
4251269307645
Packaging Unit
Unknown
External diameter
38 mm

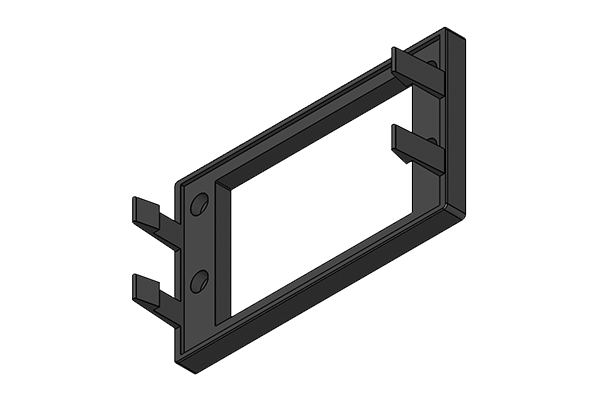

KEL-SNAP 24-E
Number
42044
EAN
4251269307669
Packaging Unit
Unknown
External diameter
38 mm
The patented KEL-SNAP frame provides a quick snap-in assembly of the KEL / KEL-U / KEL-QUICK / KEL-FG-A cable entry systems.
Control panels, cabinets or machines can be equipped with the KEL-SNAP frame at delivery, allowing a simple push in of the KEL frame when routing the cables and conduits. Perfect for enclosures that are maintenance intensive or for an install at a later date.
icotek is also offering the snap-in frame as splittable version KEL-SNAP-S in various sizes that makes a subsequent assembly possible.
There's also a blank plate BPK-SNAP available to close cut-outs of pre-assembled KEL-SNAP frames.
A cut-out of 46 mm also can be chosen instead of 36 mm. Thus prefabricated multi-pin connectors can be used.
