KBH | Hook-and-loop tape holder
for universal mounting and various mounting profiles
Hook-and-loop tape holders serve as holders for hook-and-loop cable ties, which can be mounted quickly and easily in a variety of ways. These holders can be used in combination with hook-and-loop cable ties KLKB and hook-and-loop tape KLB.

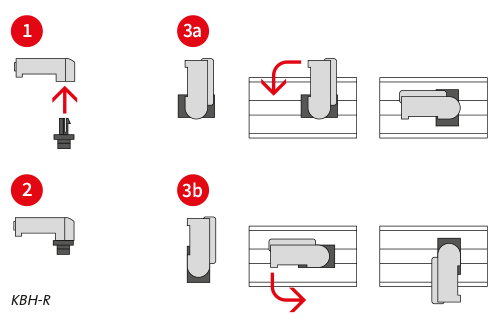

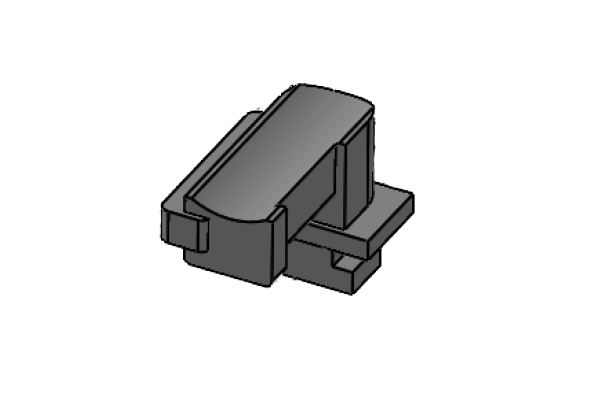

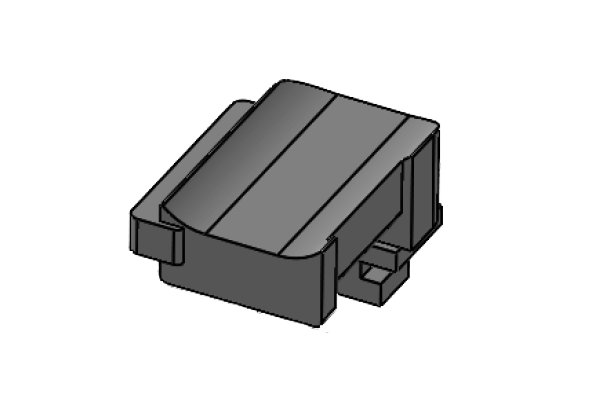

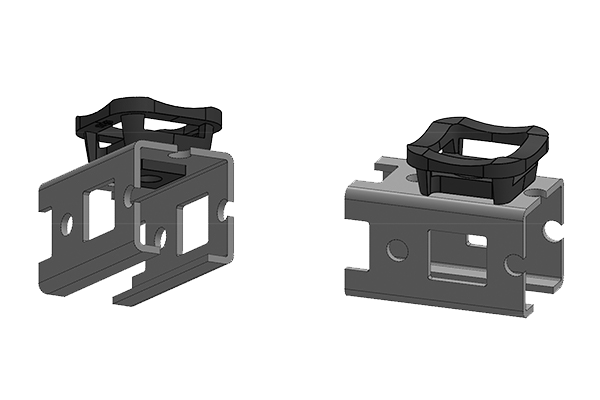

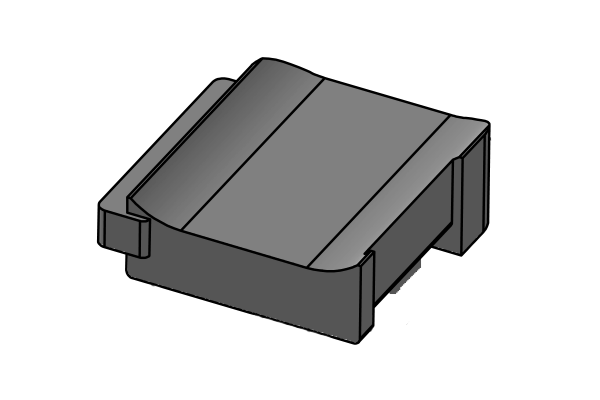

The KBH can be installed very quickly: the KBH-R with a 90° twist lock on profiles from Bosch Rexroth, MiniTec, item, MayTec, 80/20 and Rittal and the KBH-S with universal screw installation. There are also self-adhesive versions (KBH-KS) as well as versions for mounting on C-rails and top hat rails.
Assembly, disassembly, retrofitting and service work can be done easily at any time.
Part No.
61045.9005
Specifications
Temperaturbereich Range Max
140 C°
Properties
Halogenfrei, Silikonfrei
Temperaturbereich Range Min
-40 C°
Advantages and benefits
Secure hold
Versatile utilisation
Suitable for hook-and-loop tape KLB and hook-and-loop fastener KLKB
Available in three widths
Four different guiding directions of the cable plate possible
Subsequent removal or adding of cables is easily possible
Very fast assembly
Available for numerous aluminium profiles, construction profiles and mounting rails
Can be combined with sliding blocks for strut profiles of numerous manufacturers
Hook-and-loop tape holders serve as holders for hook-and-loop cable ties, which can be mounted quickly and easily in a variety of ways. These holders can be used in combination with hook-and-loop cable ties KLKB and hook-and-loop tape KLB.
The KBH can be installed very quickly: the KBH-R with a 90° twist lock on profiles from Bosch Rexroth, MiniTec, item, MayTec, 80/20 and Rittal and the KBH-S with universal screw installation. There are also self-adhesive versions (KBH-KS) as well as versions for mounting on C-rails and top hat rails.
Assembly, disassembly, retrofitting and service work can be done easily at any time.
