KEA | 90° Cable entry adapter
for split cable entry frames & multi-membrane cable entry plates / up to IP66 / UL Type 12/4X*
KEA 24 is a cable entry adapter for accommodating various icotek cable entry frames and plates of size 24. The adapter allows cables to be routed at a 90° angle. The installation direction can be horizontal or vertical. The cables are protected against mechanical tension in the entry and exit areas. Wall mounting is done either with screws and nuts or by using threaded bushings. A suitable wall seal is included in the scope of delivery. icotek also offers suitable punches for the cut-out.
The cable entry plates KEL-DP 24 Type B can be easily snapped onto the KEA 24 W90 R. The cable entry frames KEL 24, KEL-U 24, KEL-ER 24 and the cable entry plates KEL-DPZ 24 and KEL-DPU 24 can be screwed onto the KEA 24 W90 S. This enables the insertion of pre-assembled and non-assembled cables.
Protection class (KEA + ...):
- KEL-ER 24: IP54, IP65
- KEL-U 24: IP54
- KEL 24: IP54
- KEL-DPU 24: IP54, IP65
- KEL-DPZ 24: IP54, IP65, IP66
- KEL-DP 24 B: IP54
*4X for indoor use only / KEA 24 W90 S only
Part No.
48300
Specifications
Temperaturbereich Range Max
120 C°
Flame class
UL94-V0, self-extinguishing
Properties
Halogenfrei, vibration proof, Silikonfrei
Temperaturbereich Range Min
-40 C°
Advantages and benefits
Allows the adaptation of cable entry plates at a 90° angle
Quick and easy, partly tool-free (R variant) assembly
High packing density in combination with cable entry plates (size 24)
Mechanical protection at cable entry and exit due to the closed housing
Universal 90° adapter for many icotek products in size 24
Space saving within the control cabinet due to the bending radius being shifted outwards
Edge protection
Wall seal included
High stability due to the geometry of the housing
Product variants and sizes

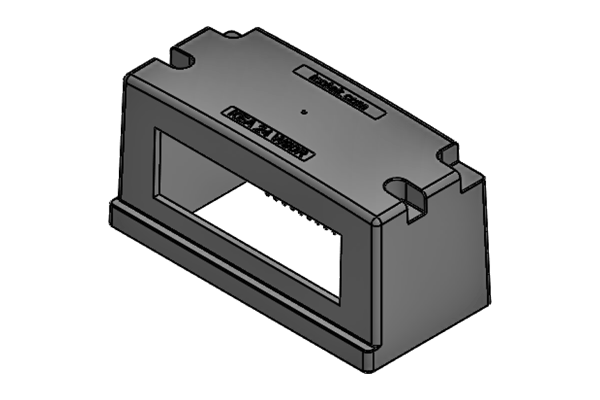

KEA 24 W90 R
Number
48300
EAN
4251269334641
Packaging Unit
Unknown
Mounting options
Snap-in, Screw type mounting
KEA 24 is a cable entry adapter for accommodating various icotek cable entry frames and plates of size 24. The adapter allows cables to be routed at a 90° angle. The installation direction can be horizontal or vertical. The cables are protected against mechanical tension in the entry and exit areas. Wall mounting is done either with screws and nuts or by using threaded bushings. A suitable wall seal is included in the scope of delivery. icotek also offers suitable punches for the cut-out.
The cable entry plates KEL-DP 24 Type B can be easily snapped onto the KEA 24 W90 R. The cable entry frames KEL 24, KEL-U 24, KEL-ER 24 and the cable entry plates KEL-DPZ 24 and KEL-DPU 24 can be screwed onto the KEA 24 W90 S. This enables the insertion of pre-assembled and non-assembled cables.
Protection class (KEA + ...):
- KEL-ER 24: IP54, IP65
- KEL-U 24: IP54
- KEL 24: IP54
- KEL-DPU 24: IP54, IP65
- KEL-DPZ 24: IP54, IP65, IP66
- KEL-DP 24 B: IP54
